Commercial Grade Pastel Flamingo Dual-Zone Inflatable Park & Ball Pit
✔ CE Certified
🇺🇸 ASTM F1918 Compliant
🇪🇺 EN1176 Standard
🏭 ISO 9001 Factory

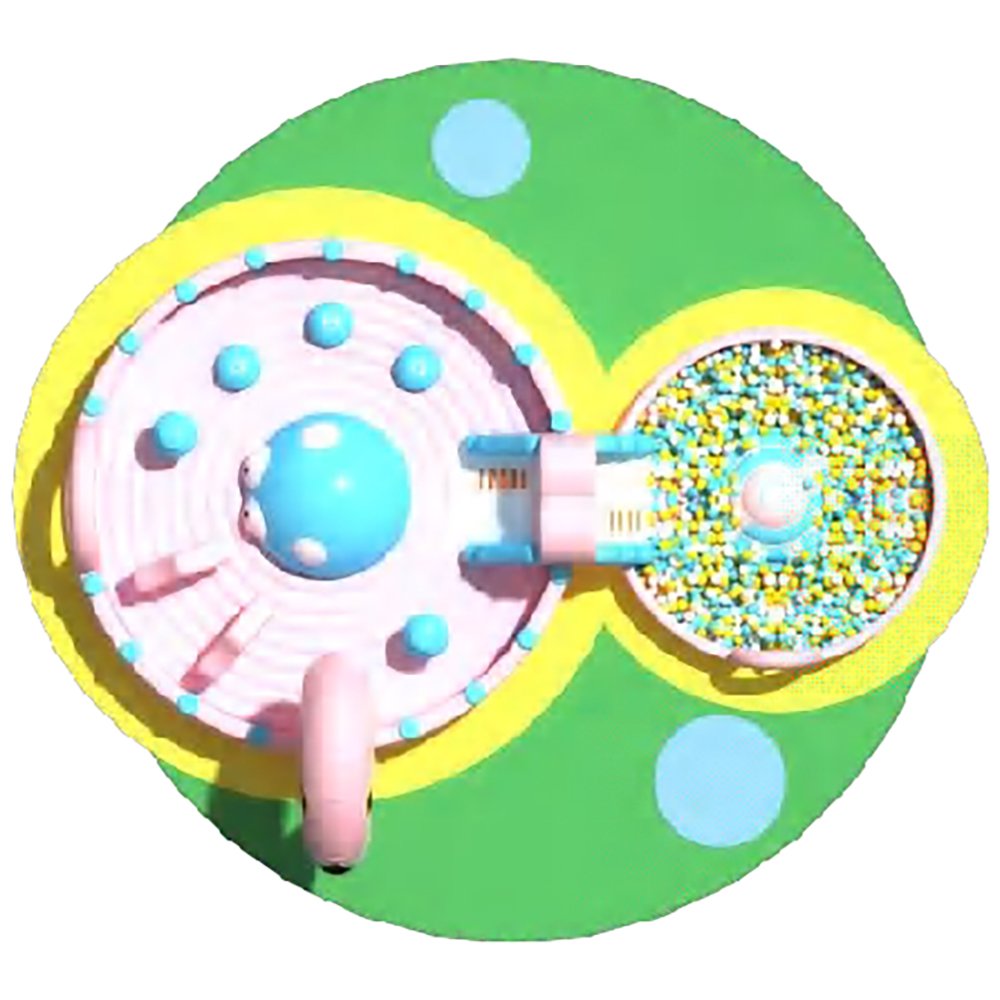

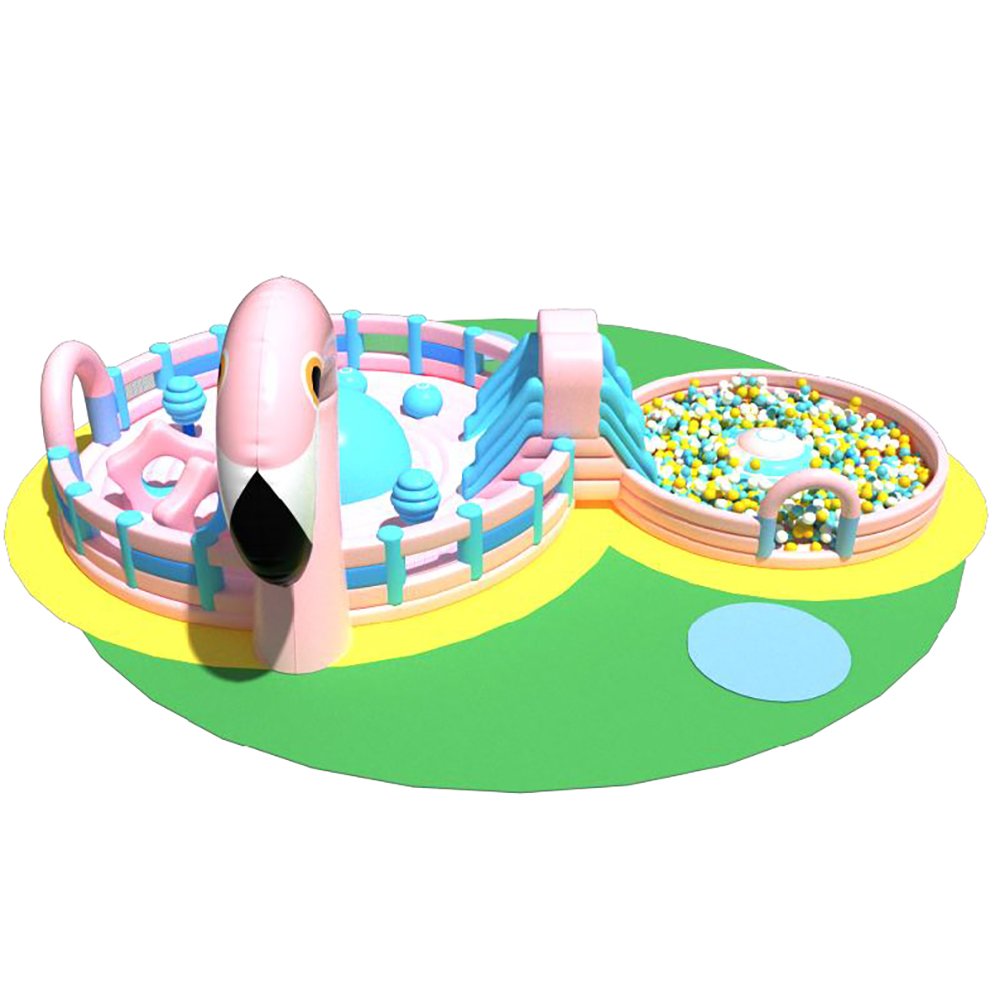

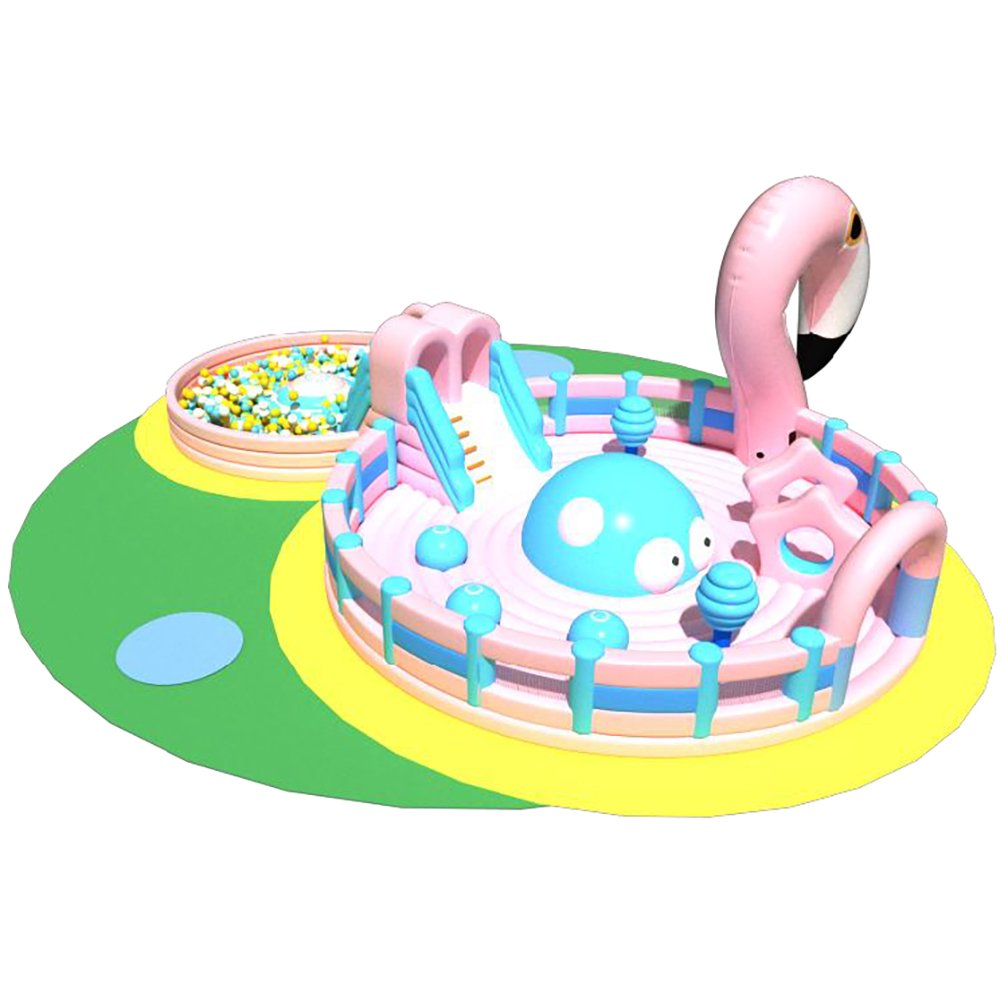

Masterfully designed for high-traffic Family Entertainment Centers (FEC) and upscale event rentals. This unique “Figure-8” dual-zone layout features a primary obstacle park anchored by a towering flamingo mascot, seamlessly connected via a dual-lane slide to a massive dedicated ball pit pool. Built entirely from commercial-grade 0.55mm Plato PVC in an eye-catching pastel colorway.
B2B Wholesale Price
Request Custom Quote
Minimum Order Quantity (MOQ)
1 Unit (Customizable)
Production Lead Time
15 - 25 Business Days
Installation Option
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
Our dual-zone inflatable structures utilize advanced internal baffling to ensure perfect air pressure balancing between the main active play area and the static ball pit containment zone.
| Primary Material | 18 oz (0.55mm) Plato PVC Tarpaulin. 1000D high-density weaving. Waterproof, puncture-proof, and lead-free. Premium pastel pink, soft blue, and yellow finish. |
|---|---|
| Stitching Technique | Double stitching throughout. Quadruple (4-way) stitching at the slide transition point, high-stress seams, and the entire base perimeter of the ball pit. |
| Blower Requirement | Requires three (3) 1.5HP or 2.0HP continuous air blowers to maintain optimal pressure across both zones. CE/UL certified. |
| Ball Pit Capacity | The secondary circular pool is designed to hold approximately 15,000 to 20,000 standard 7cm ocean balls (Balls must be purchased separately). |
| Internal Baffles | Constructed with premium 0.55mm PVC. The connecting slide bridge features reinforced structural baffles to prevent sagging under heavy dual-lane foot traffic. |
| Core Attractions | Giant 3D flamingo mascot head, central blue dome obstacle, dual-lane transition slide, and a high-wall containment ball pit with an island feature. |
Global Safety Standards & Compliance
Inflatable safety is our absolute priority. This dual-zone unit with an integrated ball pit requires specialized engineering to pass international safety inspections and mitigate entrapment risks.
🇺🇸 ASTM F2374 (US Standard)
- Ball Pit Containment: Features an elevated, reinforced pneumatic perimeter wall designed specifically to prevent balls from spilling over and to keep children securely inside the designated pit area.
- Transition Zone Safety: The slide connecting the main park to the ball pit is engineered with impact-attenuating angles, ensuring safe deceleration before entering the ball pit zone.
- Fire Resistance: Manufactured entirely with flame-retardant vinyl that complies with NFPA 701 standard test methods.
🇪🇺 EN 14960 (European Standard)
- Airflow Control: Engineered to balance air pressure seamlessly across the “Figure-8” design, preventing the ball pit zone from over-inflating or the main bounce zone from sagging.
- Anchoring System: Equipped with heavy-duty stainless steel D-rings distributed mathematically around both the main circle and the ball pit circle to withstand winds up to Force 5 (24 mph / 38 km/h).
- Non-Toxic Materials: Certified lead-free and phthalate-free, guaranteeing a safe tactile environment, which is crucial for full-body immersion in ball pits.
B2B Customization & Order Process
Need to adapt this design for wet/dry use (changing the ball pit to a shallow water pool)? Our factory provides end-to-end OEM/ODM services:
- Requirements Gathering: Specify if the secondary zone will be used for plastic balls or water. This fundamentally changes the seam sealing requirements (waterproofing vs. standard stitching).
- 3D CAD Modeling (Days 1-3): Our design team creates a precision 3D rendering for your approval, ensuring the dual-zone layout fits your exact floor plan.
- Digital Printing & Cutting: Once approved, we use high-precision automatic cutting machines and apply full-digital printing protected by liquid UV film.
- Manufacturing & Stitching (14-20 Days): Expert machinists assemble the complex figure-8 geometry using heavy-duty nylon thread with quadruple stitching at the bridge.
- Quality Control & Inflation Test (24 Hours): The finished unit is inflated in our factory for a strict 24-hour pressure test to inspect seams, zippers, and airflow balance between the two zones.
- Deflation & Packaging: The unit is tightly rolled and packed into a durable PVC tarpaulin bag. Ready for global ocean or air freight.
