Compact Macaron Hybrid Soft Play Zone with Interactive Projection

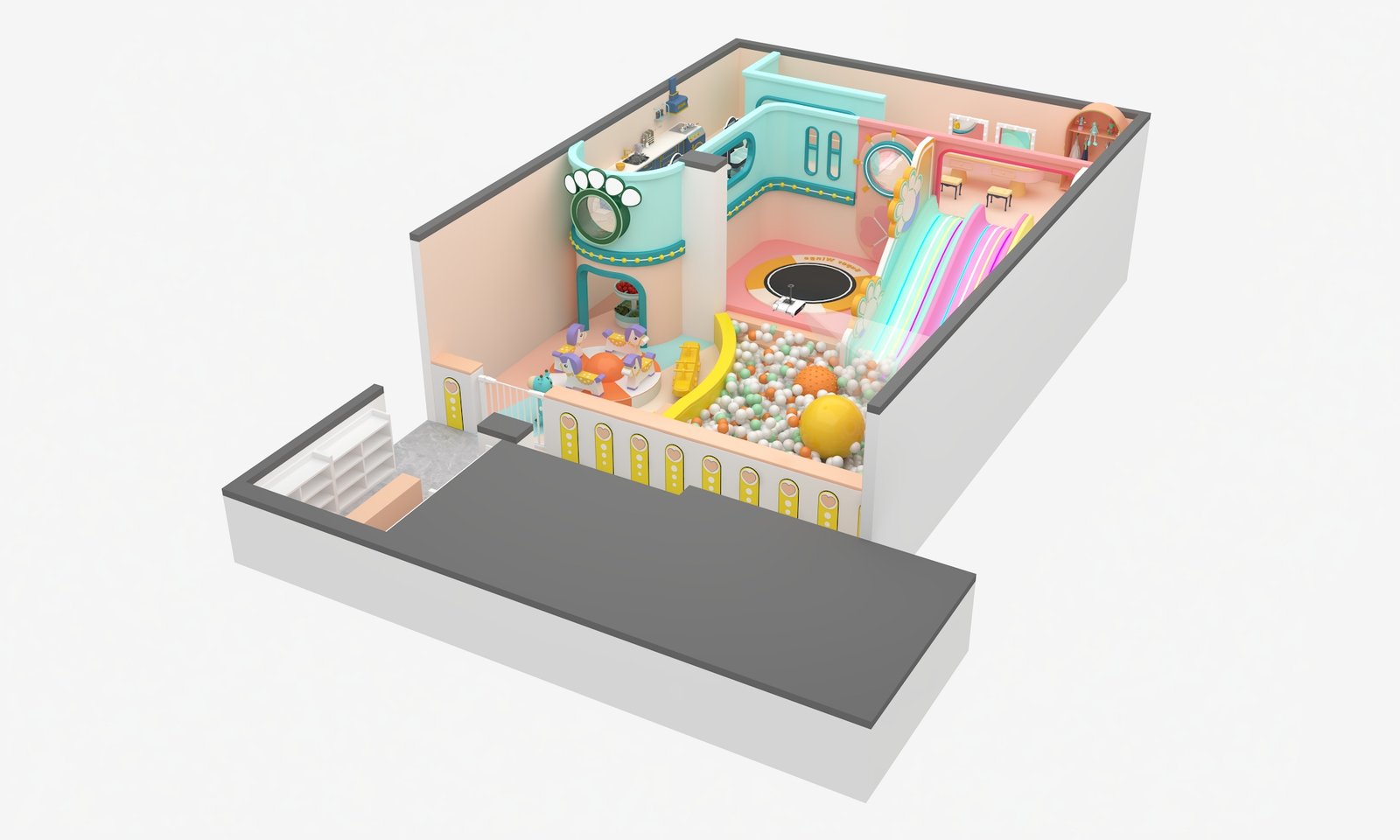

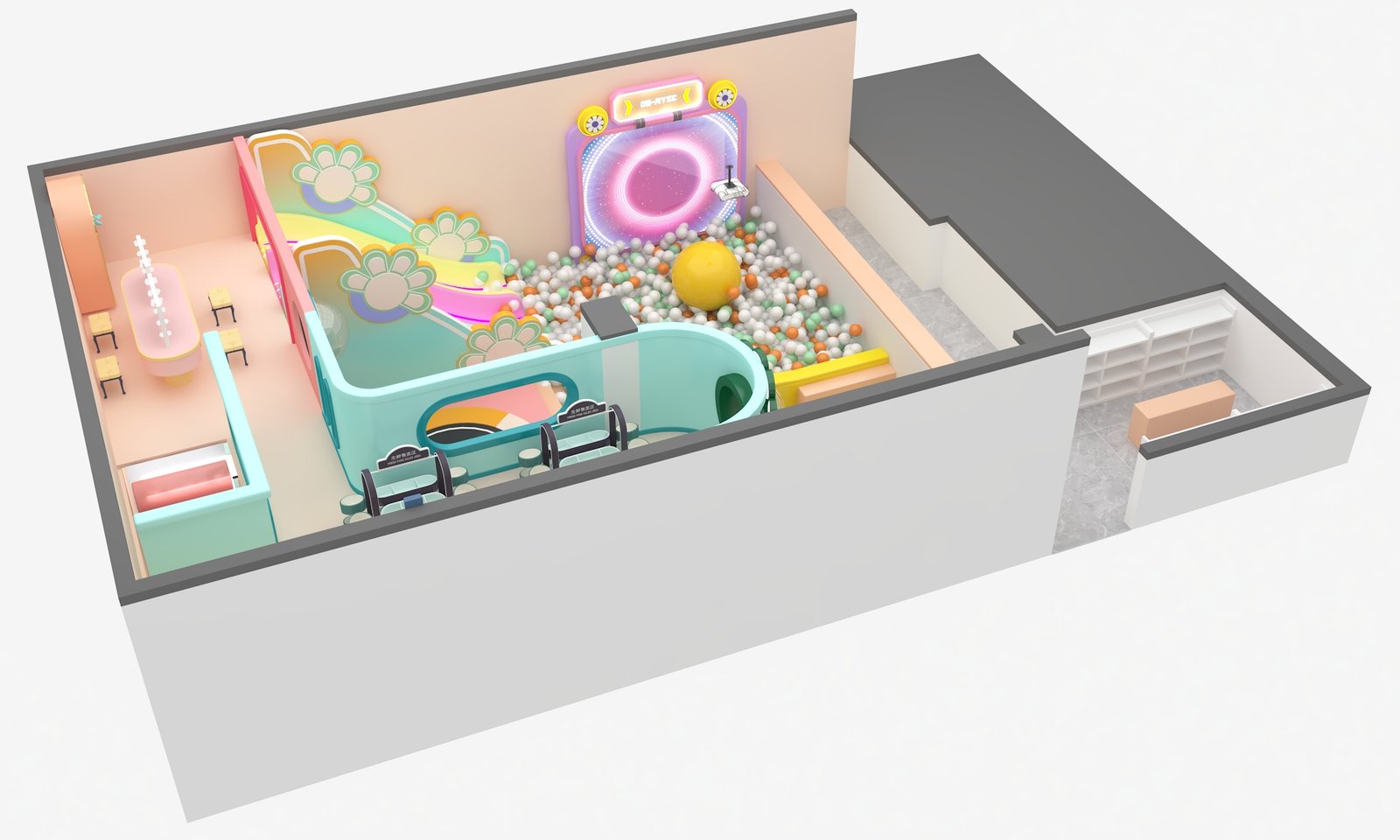

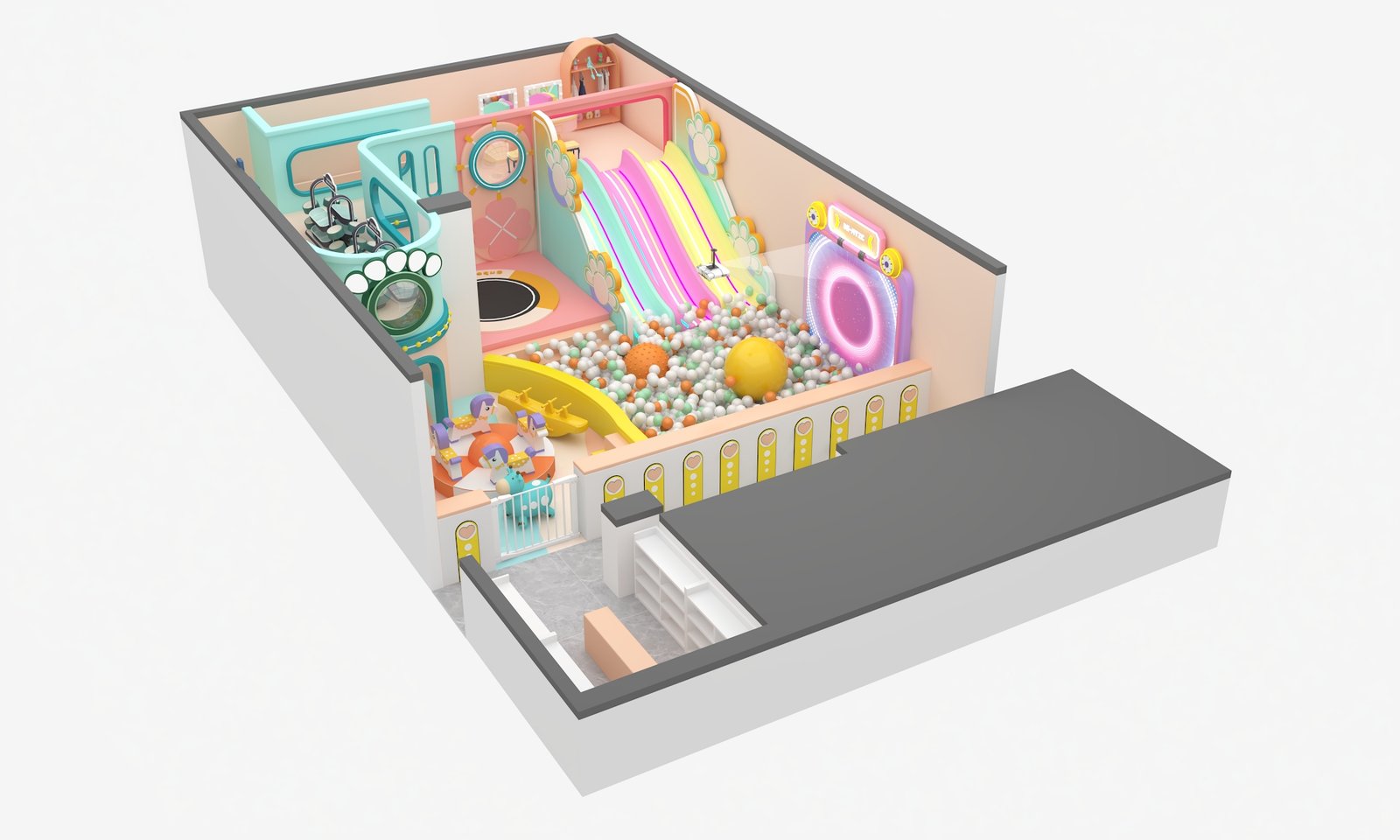

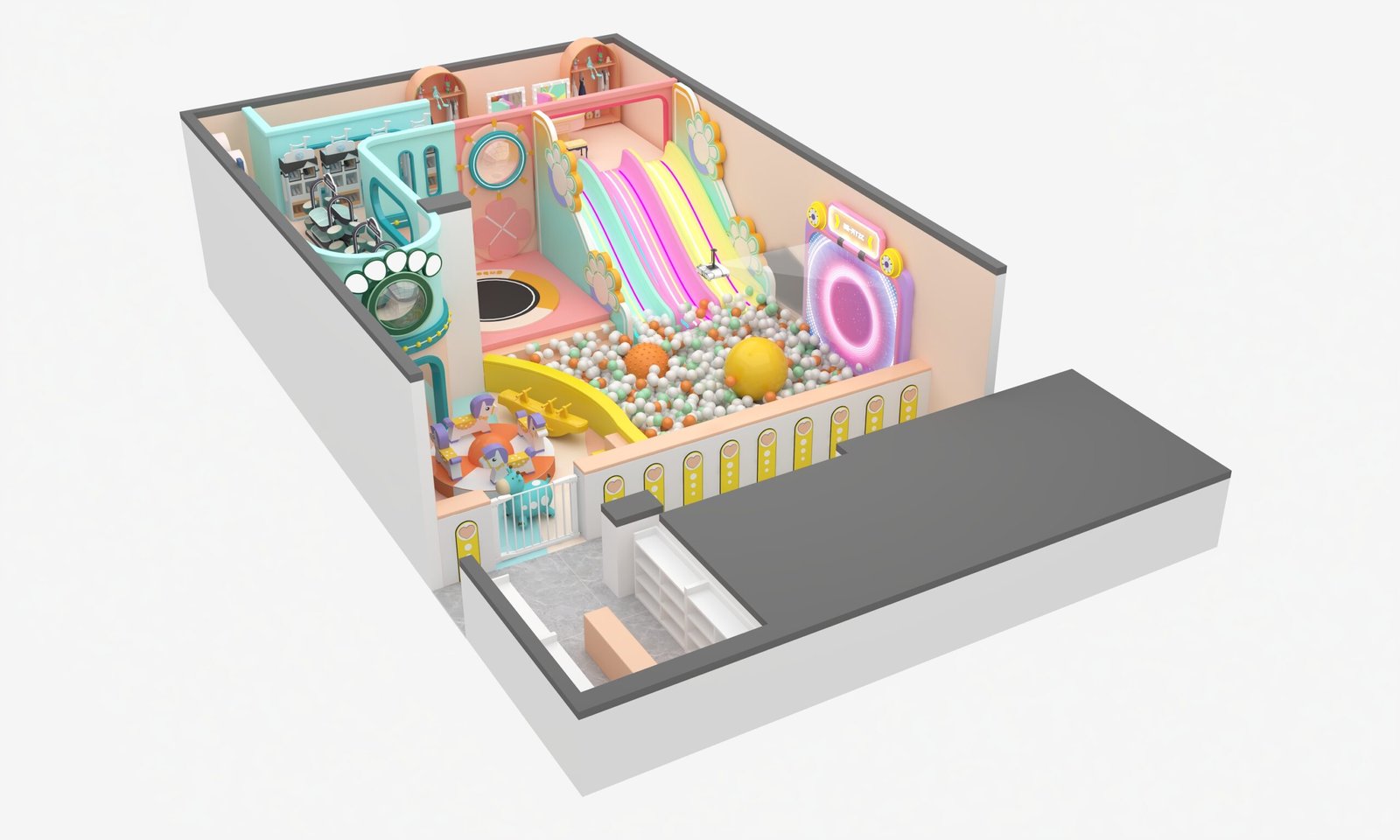

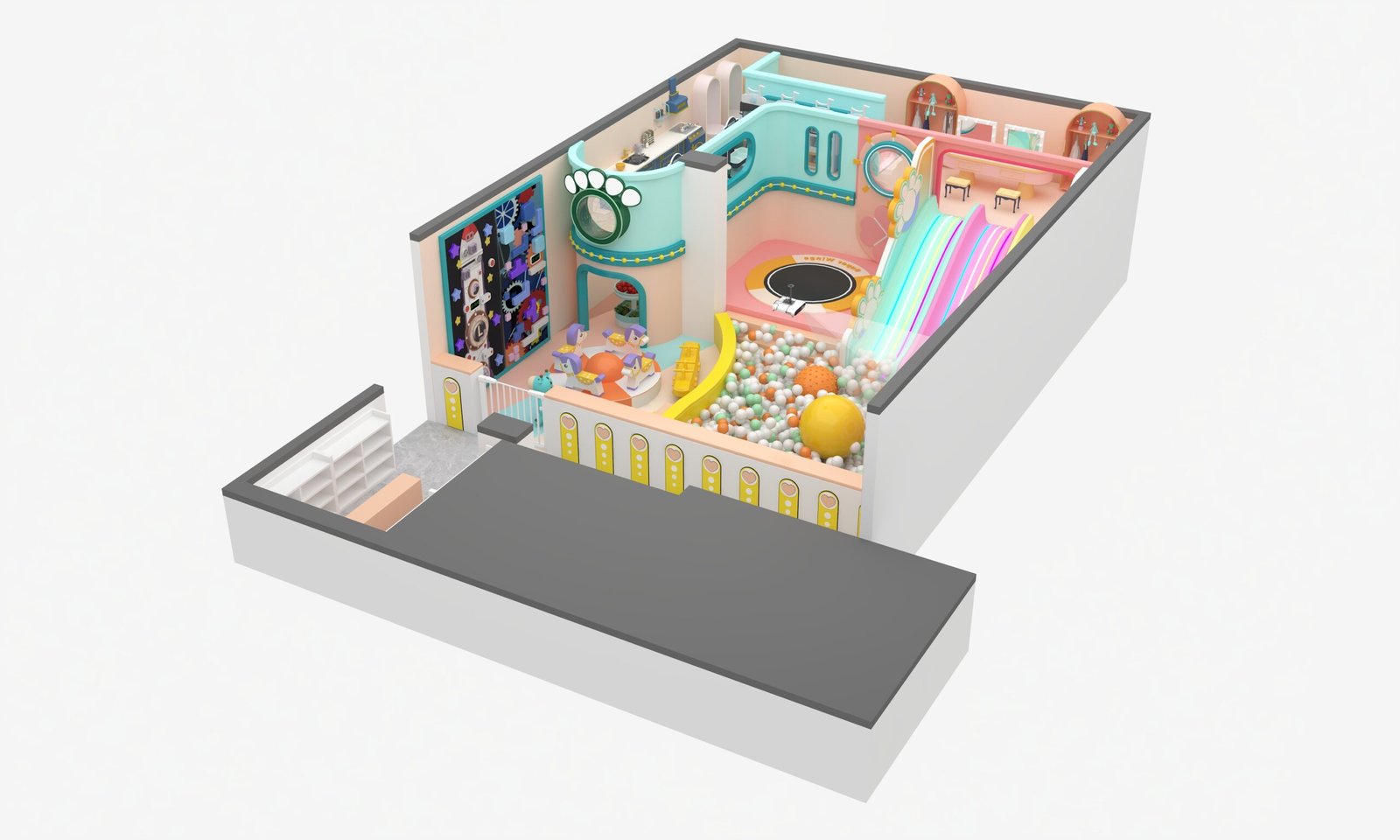

Engineered specifically to maximize ROI in strict 30 to 50 square meter spaces. This hybrid zone seamlessly blends traditional soft play (rainbow slide, ball pit, embedded mini trampoline) with high-retention digital interactive projection games and an electric mini carousel. The perfect all-in-one solution for cafes, waiting rooms, and boutique indoor centers.
Request Custom Quote
1 Complete Set (Customizable)
20 - 30 Business Days
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
| Recommended Age Group | 2 to 8 Years Old (Toddlers & Young Children) |
|---|---|
| Space Requirement | 30 to 50 Square Meters (e.g., 7m x 5m layout) |
| Player Capacity | 4-8 Children simultaneously |
| Digital Interactive Wall | Includes ultra-short-throw projector, motion sensor array, and pre-loaded multi-game software (target throwing, educational games). |
| Slide Structure Core | Concealed Φ48mm galvanized steel pipe frame (1.5mm thickness), entirely wrapped in high-density EPE foam. |
| Soft Padding & Flooring | 0.55mm flame-retardant PVC tarpaulin covering. Interlocking 20mm EVA foam floor mats throughout the play area. |
| Mini Carousel | Low-voltage, slow-rotation motorized base with soft-padded horse figures. CE/UL certified motor. |
| Play Zones Included | Rainbow slide, ocean ball pit, interactive projection, mini carousel, embedded mini trampoline, and role-play vanity/market corners. |
Global Safety Standards & Compliance
Combining electrical components (projectors, motors) with soft play requires strict adherence to international safety protocols. We guarantee full compliance for commercial operation.
Structural & Fall Safety (ASTM F1918 & EN 1176)
- Low-Height Engineering: The slide platform is kept deliberately low (under 1.5m), eliminating the need for obtrusive high-tension safety netting while remaining within safe fall height limits for toddlers.
- Flush-Mount Trampoline: The mini trampoline is seamlessly embedded into the padded flooring. There are no exposed springs or elevated edges to trip over.
- Anti-Entrapment: All gaps around the slide, carousel, and fencing are measured and tested to prevent head, neck, or finger entrapment according to EN 1176 metrics.
Electrical & Material Safety
- Isolated Wiring: All electrical wiring for the interactive projector and the mini carousel is routed securely through protective, inaccessible conduits.
- Fire Standards: The PVC coverings, EPE foam, and the pit balls themselves meet NFPA 701 (USA) and B1 (Europe) fire retardancy standards.
- Non-Toxic Components: The ocean balls are made of crush-resistant, BPA-free PE material, safe even if chewed by toddlers.
B2B Customization & Order Process
Every 30-50 sqm room is different. Whether you have a long rectangular room or an L-shaped corner, our modular design adapts easily without losing the core features.
- Space Planning (Days 1-2): Send us your floor plan. We will determine the optimal position for the interactive projection wall (which requires a flat, dimly lit wall surface) and arrange the slide and ball pit around it.
- Software Customization: The interactive projection game can be customized. We can incorporate your company logo into the game startup screen or select game themes that match your brand.
- Color & Theme (Days 3-5): The current Macaron palette can be shifted. Prefer a Jungle theme or a Space theme? We update the PVC leather colors and the role-play wall decals accordingly.
- Manufacturing & Testing (20-28 Days): We assemble and test the electrical components (carousel motor and projector sensor calibration) in our factory before dispatch.
- Plug & Play Installation: Designed for easy deployment. The soft structures use simple fastener systems, and the projector comes pre-calibrated—just mount it to the ceiling, plug it in, and the system is ready.
