Extreme Modular Ninja Warrior Inflatable Obstacle Course

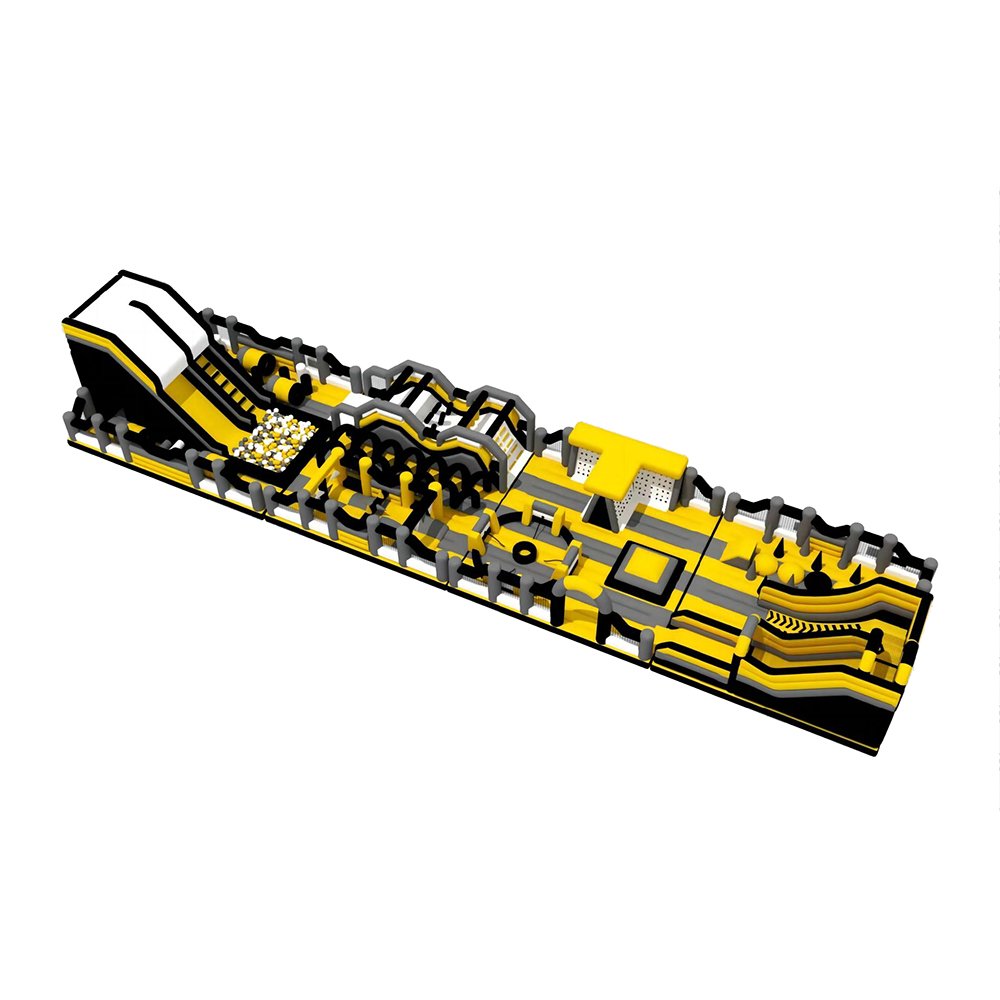

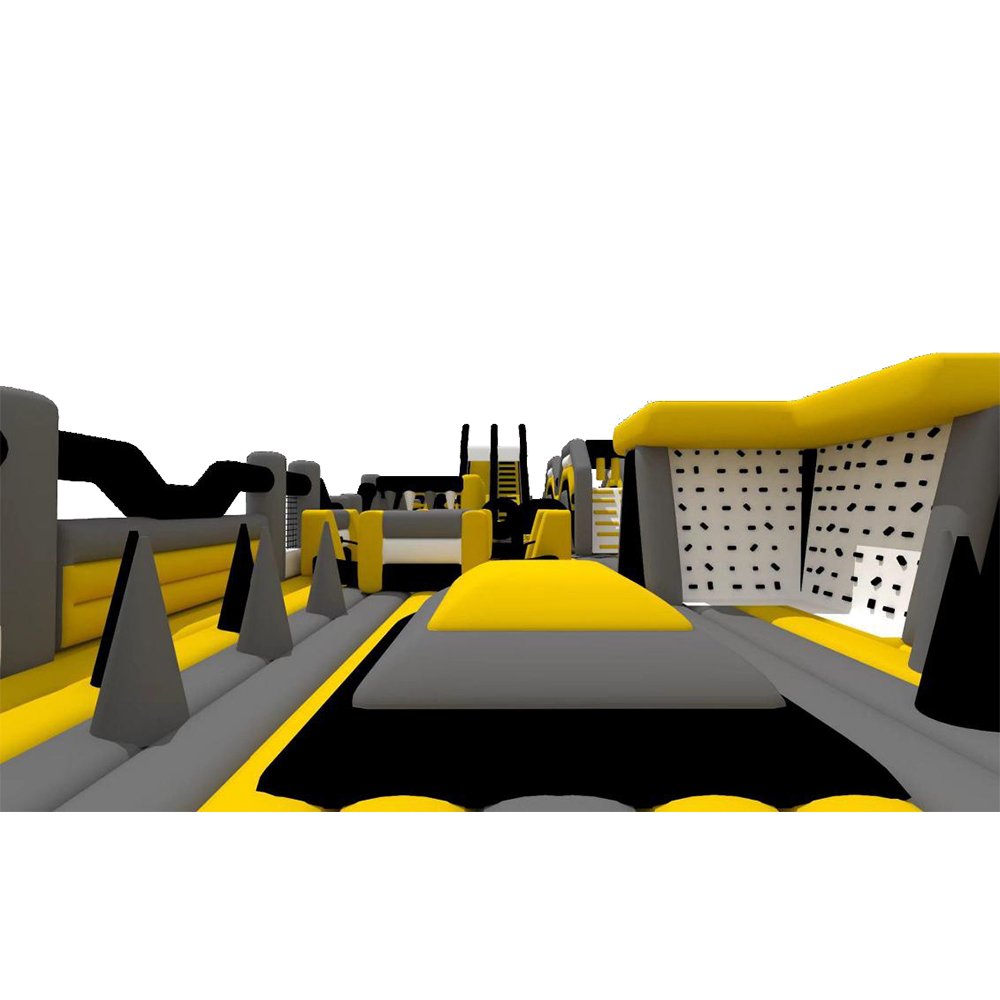

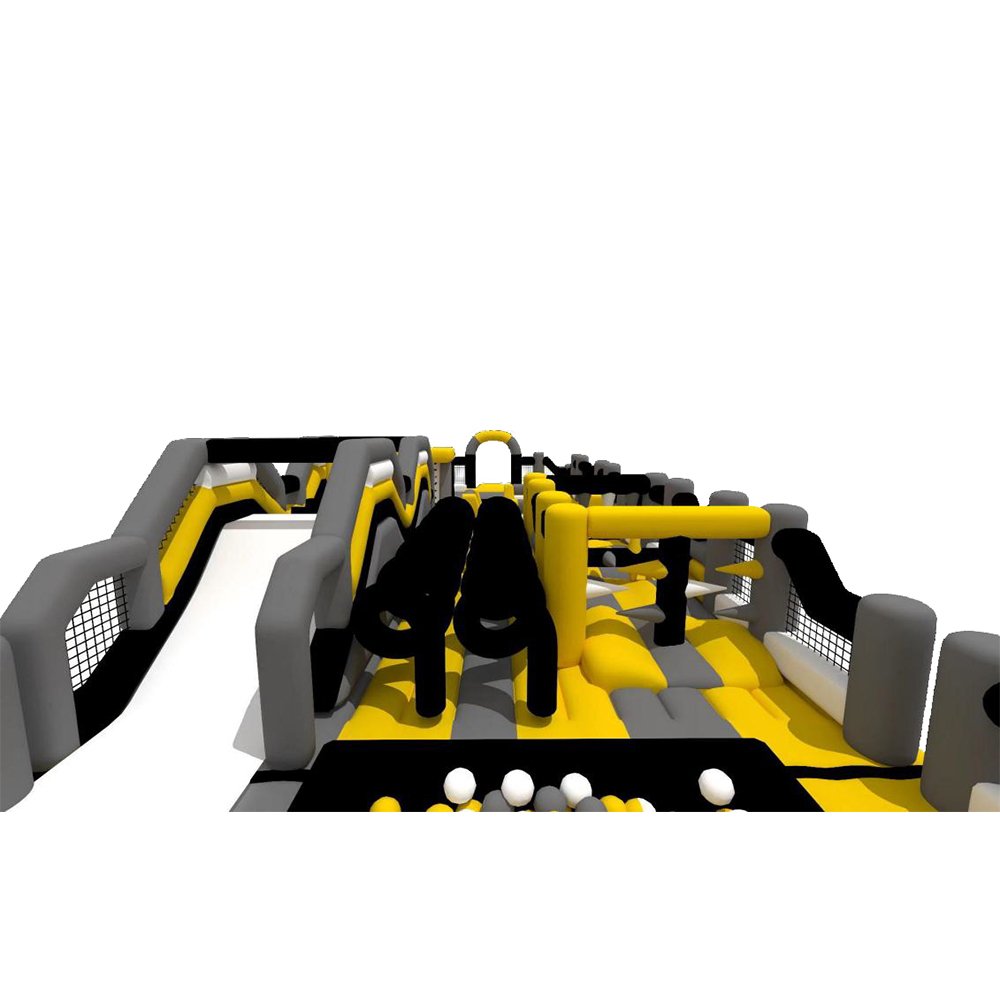

Designed for extreme throughput and high-energy entertainment. This massive, multi-section inflatable ninja course features challenging pop-up cones, black-out tunnels, balancing beams, an immense rock-climbing wall, and a thrilling dual-lane slide that drops directly into a huge containment ball pit. Perfect for large indoor FECs (Family Entertainment Centers) or outdoor festivals.
Request Custom Quote
1 Unit (Customizable)
15 - 25 Business Days
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
| Primary Material | 18 oz (0.55mm) Plato PVC Tarpaulin. 1000D high-density weaving. Lead-free, waterproof, and highly puncture-resistant. |
|---|---|
| Connection System | Industrial-grade sandwich Velcro system with reinforced D-rings to securely lock modules together without air leaks. |
| Blower Requirement | Requires four to six (4-6) 1.5HP/2.0HP continuous air blowers (included). 110V/220V CE/UL certified available. |
| Obstacle Elements | Black-out crawl tubes, vertical pop-up pillars, X-hurdles, high-density climbing holds, and giant drop slides. |
| Finish Zone | Massive integrated ball pit containment zone at the base of the final slides. |
Global Safety Standards & Compliance
When dealing with high-throughput teen and adult-friendly inflatables, safety margins must be strictly over-engineered. This mega course minimizes liability while maximizing thrills.
🇺🇸 ASTM F2374-22 (US Standard)
- High-Wall Containment: Features elevated inflatable walls and heavy-duty safety netting at the top of the climbing wall and slide platforms to prevent accidental falls.
- Fire Resistance: Manufactured entirely with flame-retardant vinyl that complies with strict NFPA 701 standard tests.
- Stress-Point Reinforcement: Quadruple (4-way) stitching and internal webbing straps at all high-traffic areas (slide bases, obstacle joints) to handle heavy adult impacts.
🇪🇺 EN 14960 (European Standard)
- Anchoring Geometry: Equipped with oversized stainless steel D-rings mathematically distributed to withstand high wind loads (up to Force 5) when properly anchored outdoors.

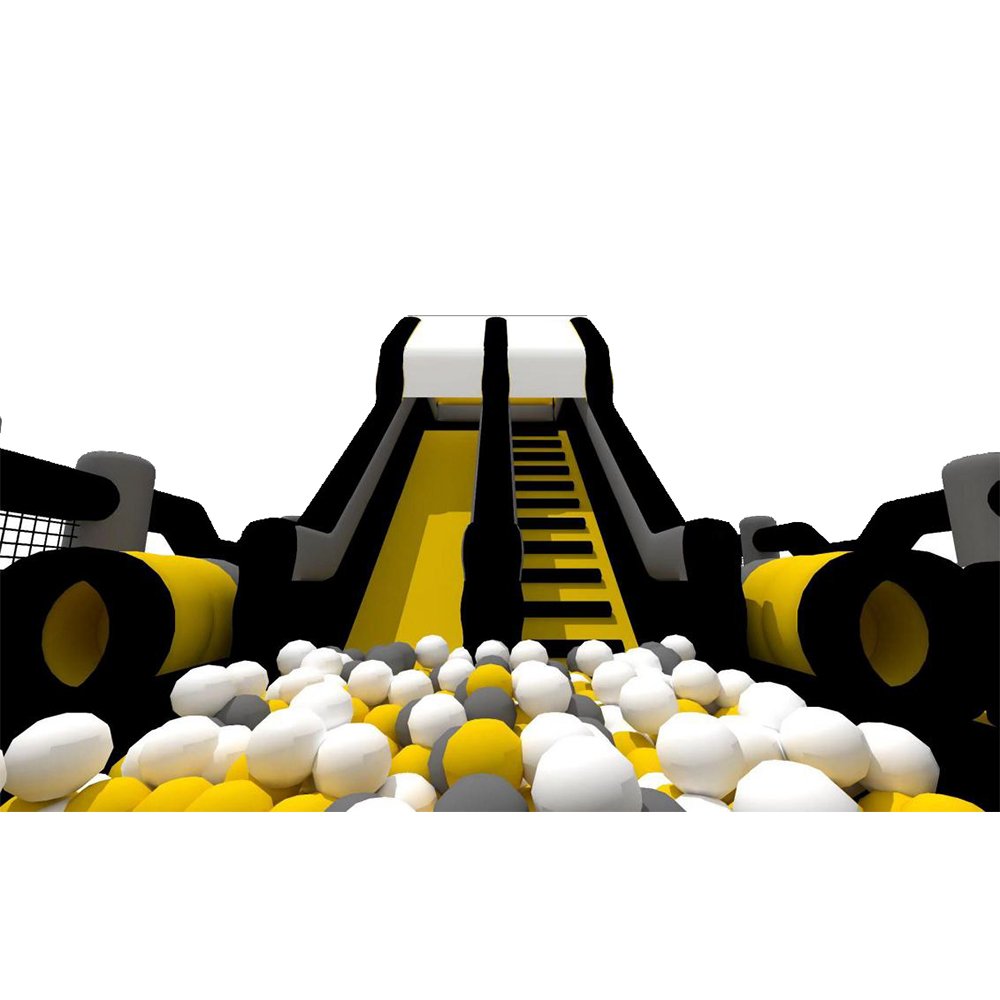

- Safe Deceleration Zones: The slide incorporates a strategically angled run-out lane directly into a ball pit, ensuring a safe, cushioned stop for users of all weights.
- Non-Toxic Certification: Certified completely lead-free and phthalate-free, passing strict European chemical safety regulations.
B2B Customization & Order Process
Our mega obstacle courses are fully modular. Want it longer? Need a U-shape turn? Want your corporate logo on the slides? Our factory provides complete OEM/ODM solutions:
- Consultation & Footprint Planning: Share your indoor/outdoor venue dimensions. We’ll advise on the best modular configuration (straight line, L-shape, or U-shape).
- 3D Layout & Rendering (Days 1-4): Our engineers create a full 3D CAD model incorporating your specific color palette (e.g., swapping the yellow for your brand colors) and structural flow.
- Precision Manufacturing (15-20 Days): Utilizing automated cutting machines, we construct the modules. High-stress areas receive double interior and exterior PVC reinforcement strips.
- Modular Quality Control Test: Every individual section is inflated, stress-tested, and then physically connected together in our facility to ensure the Velcro joints and airflow are perfect.
- Freight Optimization: Due to the immense size, the course is deflated using industrial vacuums, tightly rolled, and packed into multiple heavy-duty PVC bags. We handle the logistics for LCL or FCL ocean freight direct to your port or door.
