Mega Indoor Sports Park Equipment Set
✔ CE Certified
🇺🇸 ASTM F1918 Compliant
🇪🇺 EN1176 Standard
🏭 ISO 9001 Factory

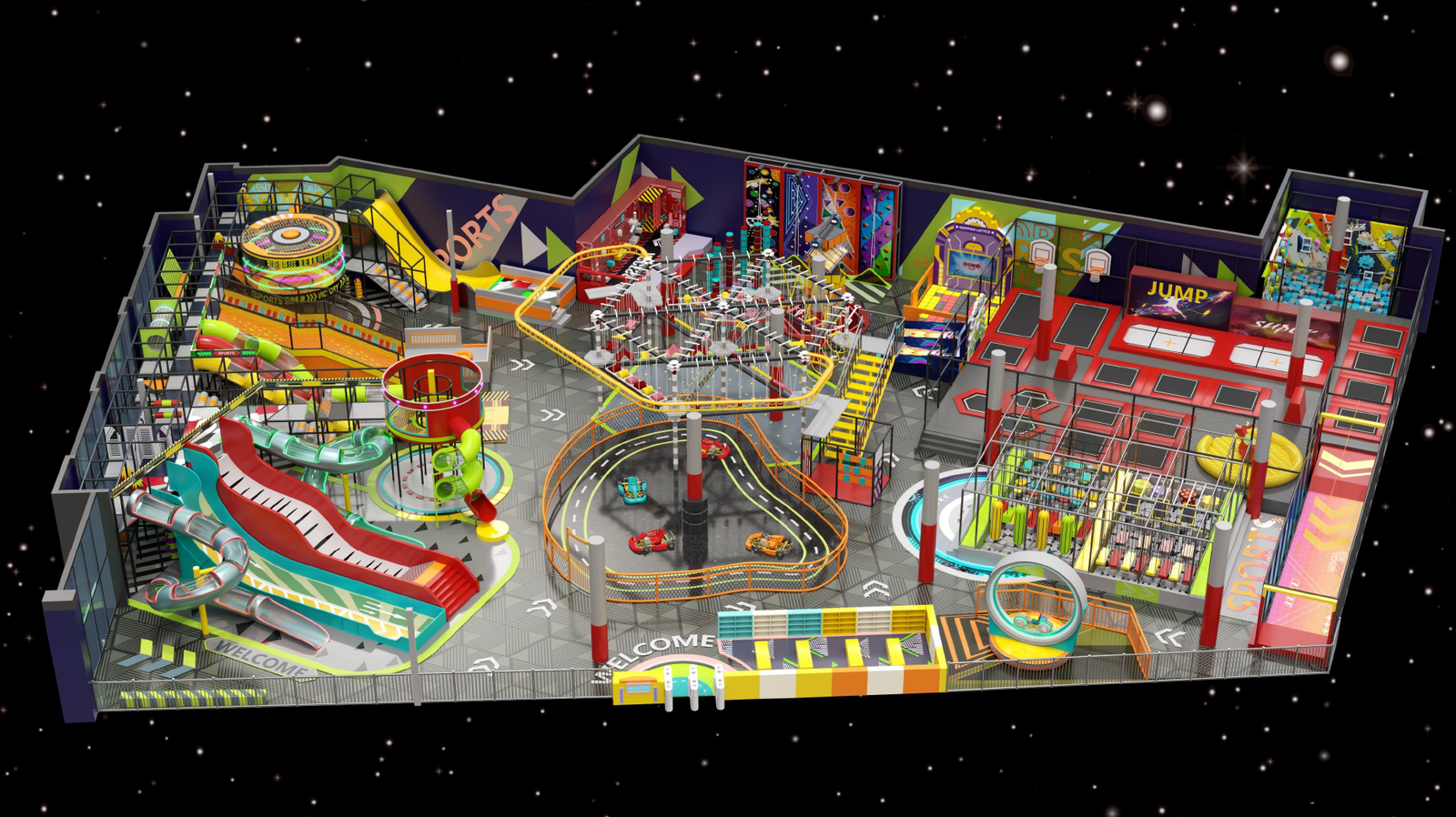

A fully pre-engineered, commercial-grade equipment package ready for deployment. We have standardized the ultimate high-ROI indoor park components—including track barriers, suspended ropes hardware, heavy-duty trampolines, and the complete “Hopping Lattice” floor system—into one massive, bolt-together product SKU.
B2B Wholesale Price
Request Formal Quotation
Minimum Order Quantity (MOQ)
1 Complete Set
Production Lead Time
35 - 50 Business Days
Installation Option
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
Unlike standard bounce houses, a Mega Park requires mixed-gauge industrial materials. We utilize a combination of heavy-duty materials to balance total weight with extreme commercial durability.
| Module 1: Karting Track System | Complete track boundary system (high-density anti-collision PE barriers). Note: Electric karts are sold separately to match your local voltage and licensing requirements. |
|---|---|
| Module 2: Suspended Ropes Course | Pre-cut and drilled H-beam steel structures, continuous belay rail system, harnesses, and 15+ suspended obstacle elements (swinging logs, rope nets). |
| Module 3: "Hopping Lattice" Interactive System | Includes standard 30x30cm tiles, PC control unit, pre-loaded game software, and specialized ABS perimeter ramps. |

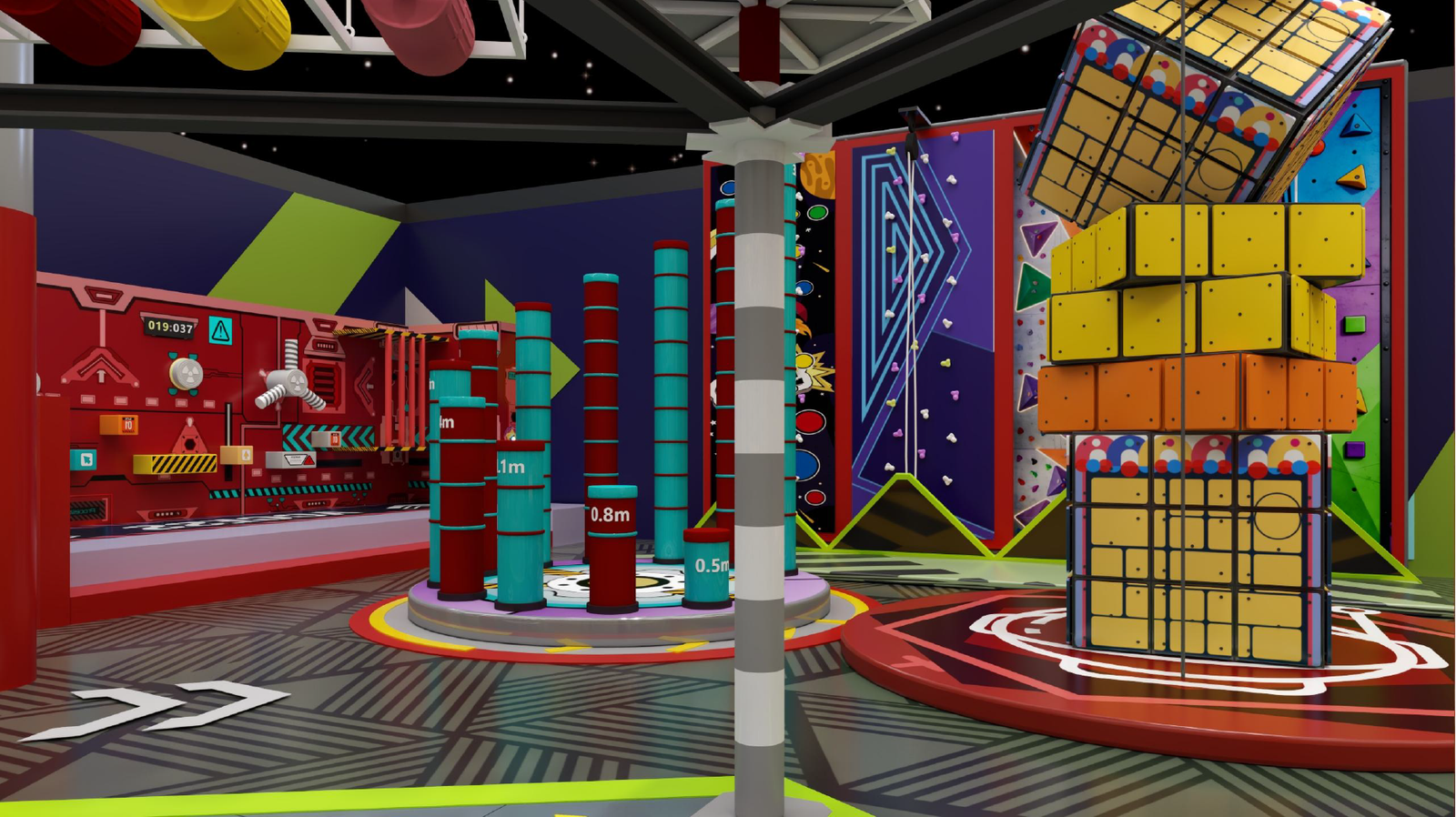

| Module 4: Trampoline & Climbing Matrix | All hot-dip galvanized framework, USA imported PP mats, piano-wire springs, PVC safety pads, Rubik's cube climbing towers (with auto-belays), and a commercial mechanical bull unit. |

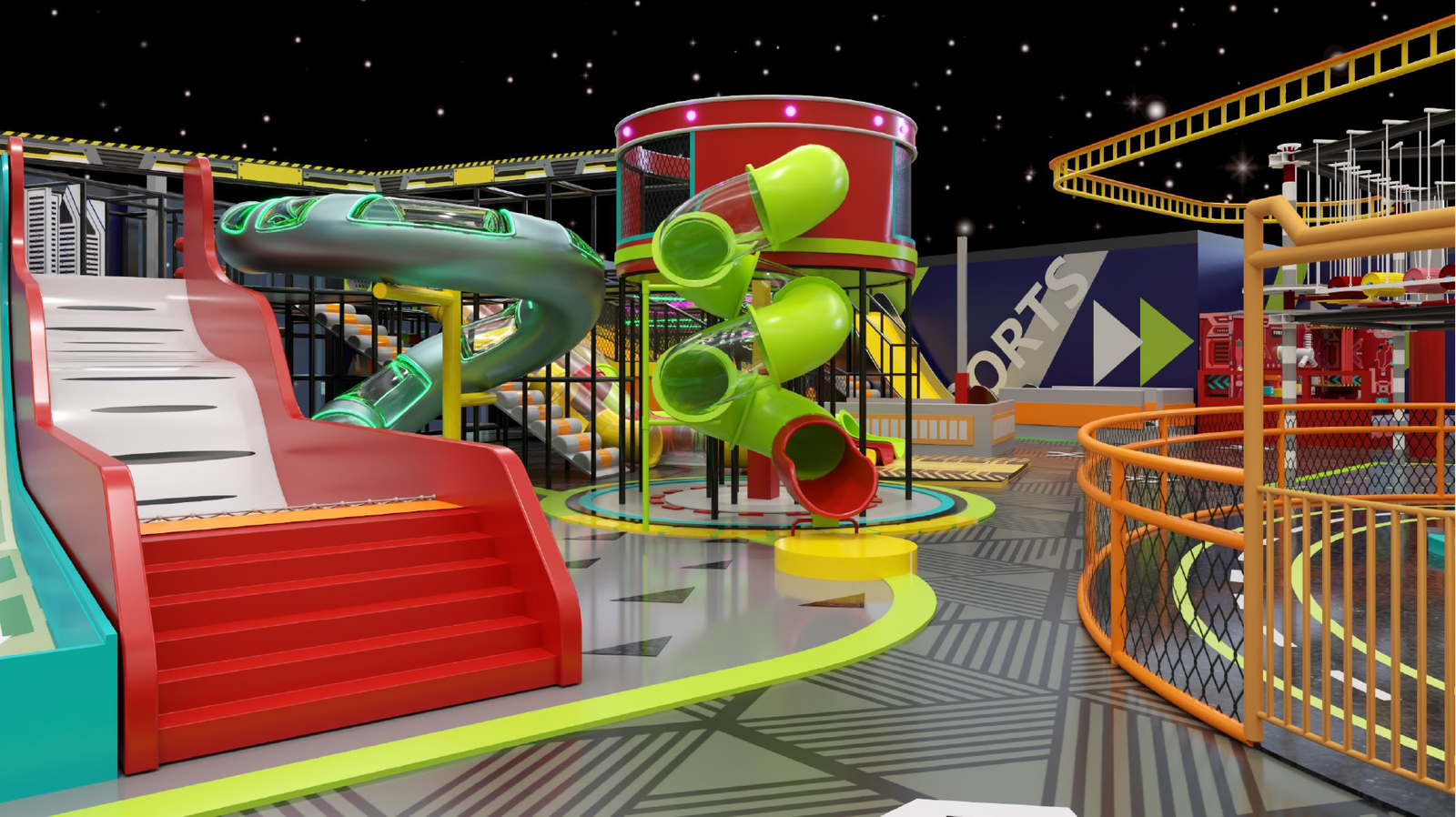

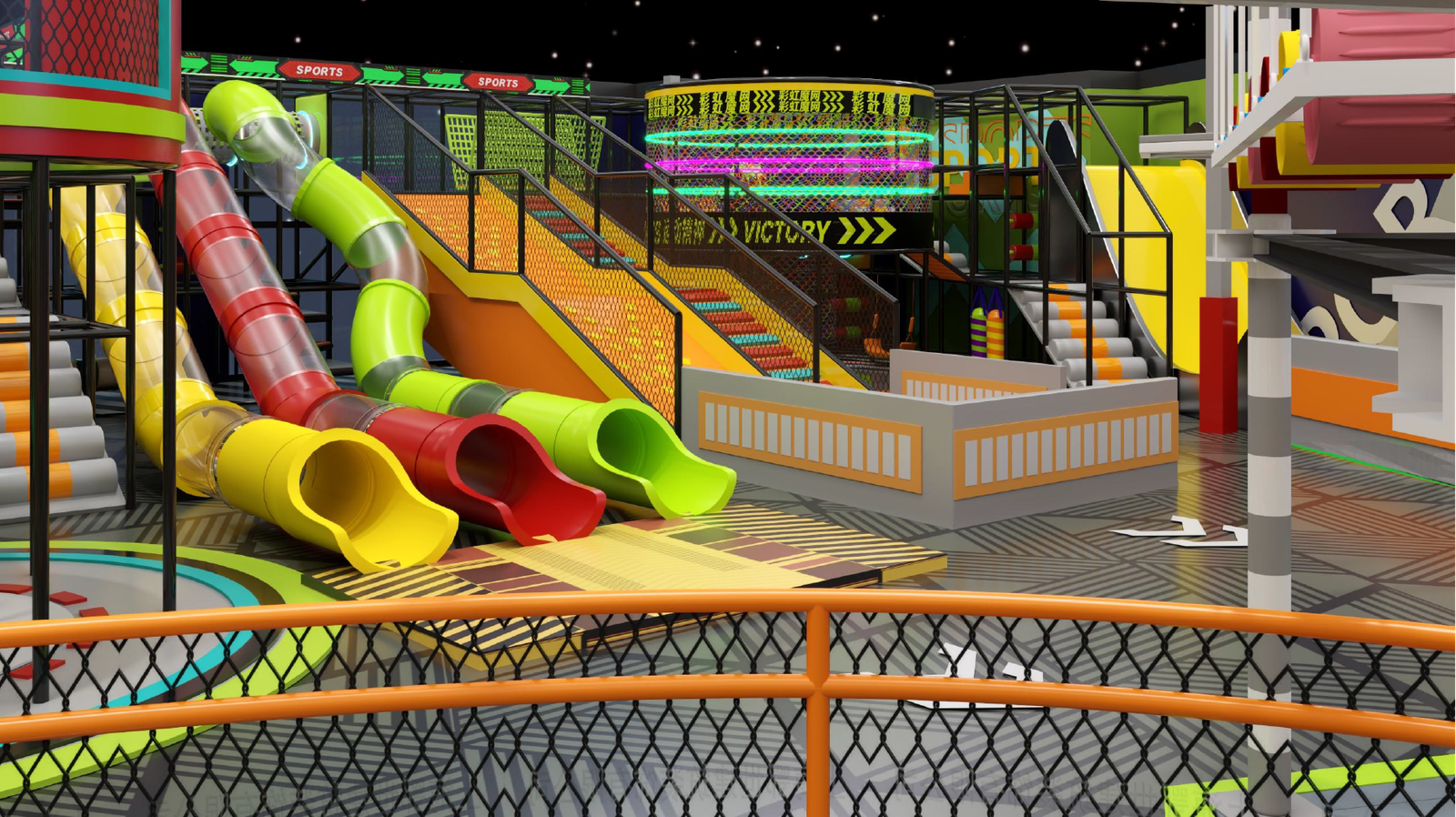

| Module 5: Drop Slides & Soft Play | Fiberglass giant drop slides, spiral tubes, steel support framework, and EPE foam pit cubes (fire-retardant treated). |
Hardcore Material Specifications
We don’t sell flimsy consumer toys. Every bolt and panel in this product is specified for punishing 24/7 commercial operations and strict ASTM/CE compliance.
The “Hopping Lattice” (Active LED Floor)
- Tile Specifications: 30cm x 30cm x 7.5cm modules. Constructed with an industrial ABS shell and topped with 10mm thick explosion-proof tempered glass.
- Load Capacity: Engineered to withstand massive impact. Each single tile has a static loading capability of 500kg (1,100 lbs).
- Electronics: IP65 rated (spill-proof). Powered by standard 7W RGB 3-in-1 LEDs with a lifespan of >100,000 hours. CE and RoHS certified.

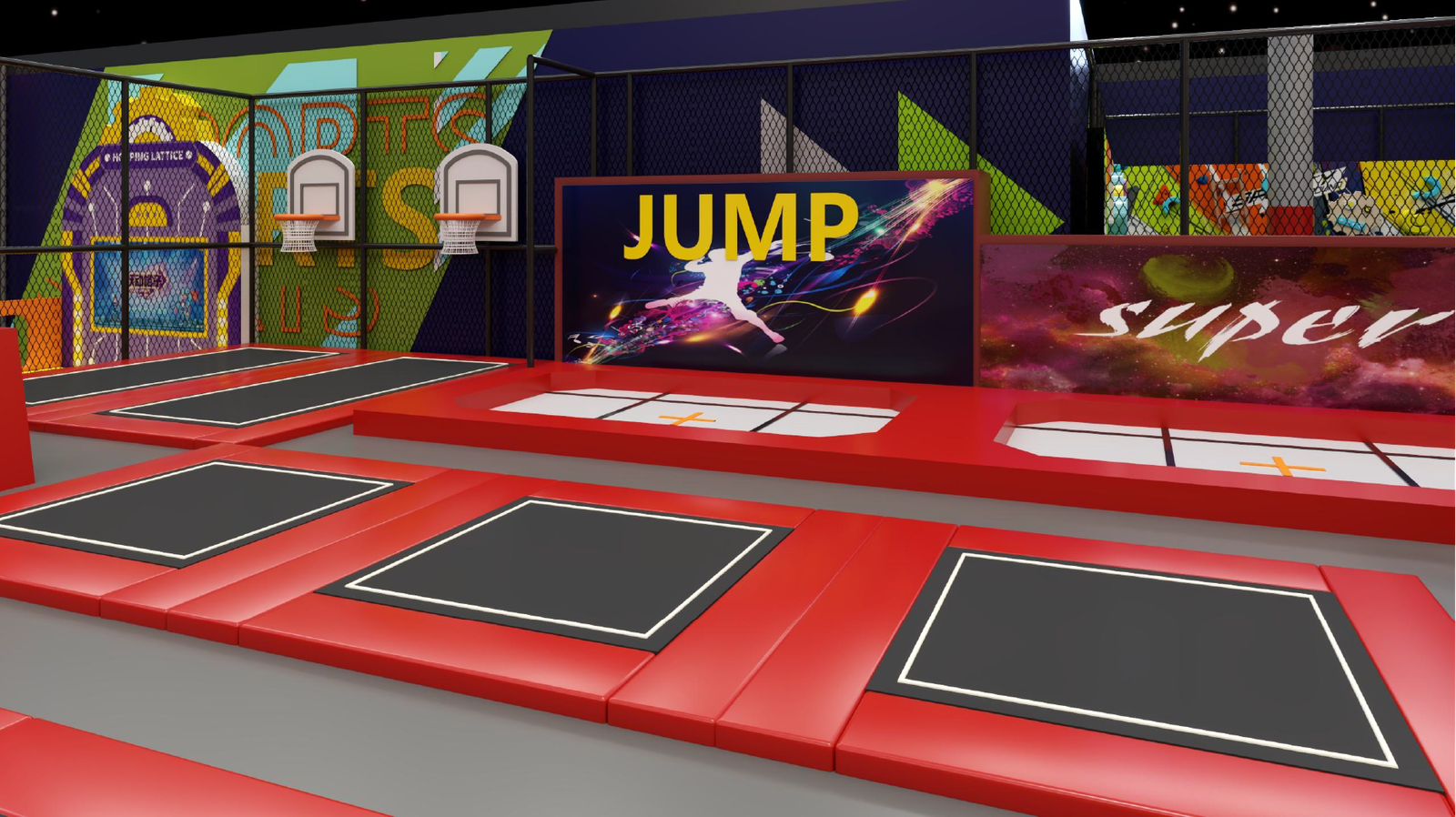

Trampoline & Structural Framework
- Steel Chassis: Main structures utilize 80x80mm or 100x100mm hot-dip galvanized steel tubing (3.0mm thickness minimum). Rust-proof treated inside and out.
- Jumping Mats: 100% Commercial-grade Polypropylene (PP) imported from the USA. UV-resistant with 8-row perimeter stitching.
- Safety Padding: 70mm thick closed-cell EPE foam covered with 0.55mm fire-retardant PVC tarpaulin (Gloss finish, wipe-clean surface).
Logistics, Shipping & Modular Assembly
Treat this product like purchasing a prefabricated skyscraper. It is heavy, bulky, and requires professional handling upon arrival.
Container Loading & Freight
- Volume: A complete Mega Park set typically requires two to three 40ft High Cube (HQ) shipping containers.
- Packing Standards: Steel pipes are bundled and wrapped in thick cotton and PP film to prevent scratching. LED tiles are packed in export-grade cartons or optional flight cases. Trampoline mats and pads are vacuum-compressed and palletized.
- Unloading: You must have a commercial forklift and a loading dock (or ramp) at your facility to unload this product. Hand-unloading is not feasible for the structural steel components.
Assembly & Bolt-Together Design
- No On-Site Welding: The entire product is designed as a modular, bolt-together system. This eliminates fire hazards during installation and allows for future relocation.
- CAD Instructions: The product ships with a comprehensive 3D CAD installation manual, labeled part numbers matching the steel pipes, and wiring diagrams for the Hopping Lattice.
- Factory Dispatch Available: While your local contractors can assemble the framework using our manuals, we highly recommend purchasing our Installation Supervisor Add-on, where we fly our lead engineer to your site to oversee your local crew.
