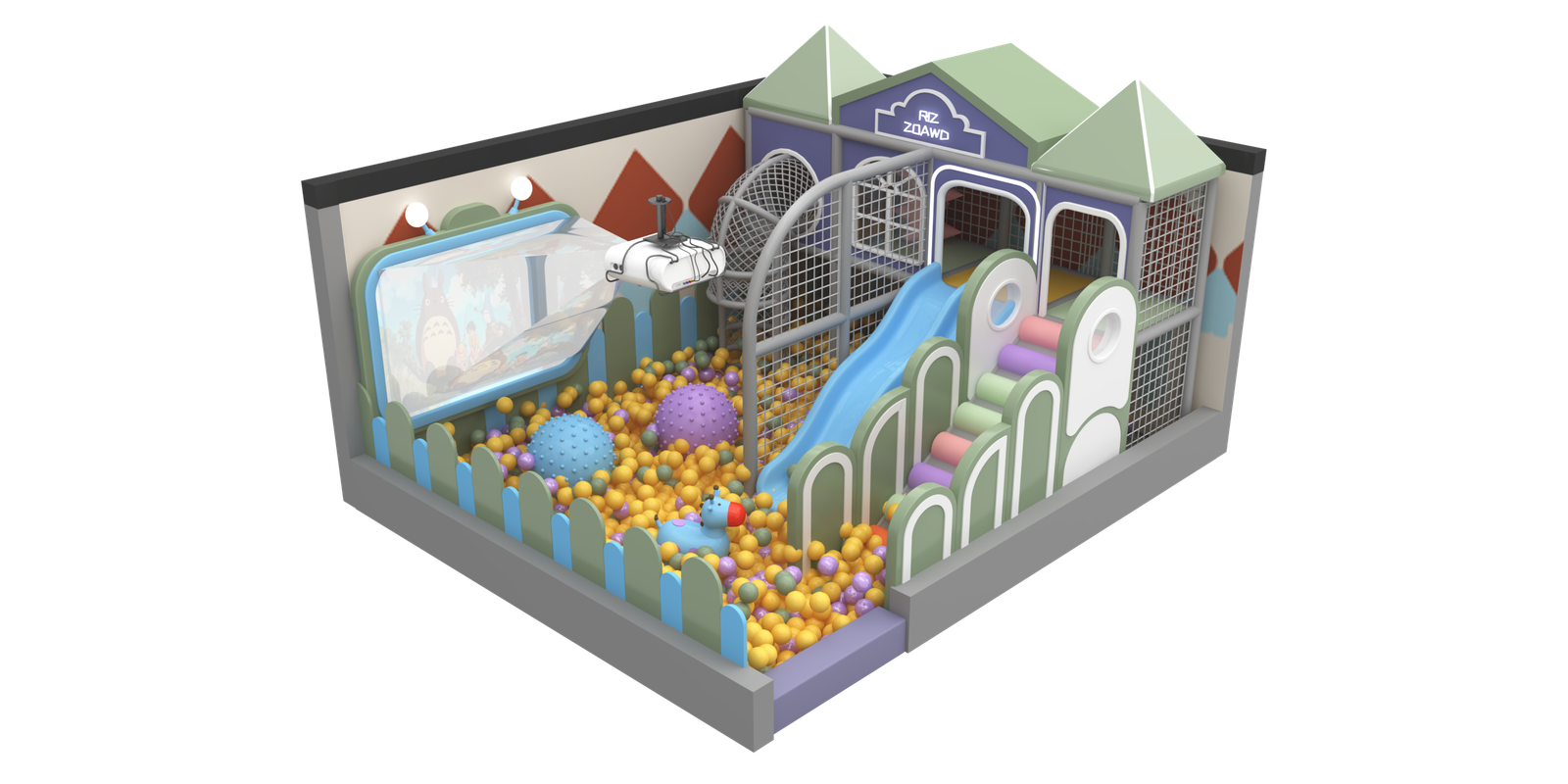

Premium Sage & Lavender Interactive Play Unit with Net Crawl Tunnel
Designed for high-end cafes, boutique hotels, and premium daycare centers. This 30 to 50 sqm corner unit abandons aggressive primary colors in favor of a sophisticated Sage Green and Lavender palette. It perfectly balances physical exertion (via the elevated net crawl tunnel and slide) with digital engagement (via the integrated ball-strike projection wall).
Request Custom Quote
1 Complete Set (Customizable)
20 - 30 Business Days
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
| Recommended Age Group | 2 to 8 Years Old (Toddlers & Young Children) |
|---|---|
| Space Requirement | 30 to 50 Square Meters (e.g., 7m x 5m layout) |
| Player Capacity | 4-8 Children simultaneously |
| Interactive Projection System | Includes 1000+ Lumens short-throw projector, high-precision IR motion sensor array, micro-PC, and a specialized impact-resistant screen surface. |
| Core Framework | Heavy-duty Φ48mm hot-dip galvanized steel pipes (1.5mm thickness). Highly stable and rust-proof. |
| Net Crawl Tunnel | Semi-cylindrical heavy-duty nylon webbing supported by curved steel framing. Internal diameter ≥ 750mm for adult access. |
| Soft Padding & Theming | Thick EPE pearl cotton foam wrapped in 0.55mm thick fire-retardant PVC tarpaulin in a premium Sage/Lavender/Cream palette. |
| Ball Pit System | Contains approx. 12,000 crush-proof PE balls (color-matched), acting as a deceleration zone and interactive ammunition. |
| Key Play Features | Digital smash-ball game wall, net crawl tunnel, single open slide, soft padded access stairs, and customizable marquee. |
Global Safety Standards & Compliance
We do not compromise safety for aesthetics. From the clearance of the crawl tunnel to the placement of the projector, every element is engineered for safe commercial operation.
Enclosed Structure Safety (EN 1176-1)
- Crawl Tunnel Rescue Access: The semi-cylindrical net crawl tunnel is strictly designed with an internal cross-section exceeding 750mm. This complies with EN 1176-1 requirements for enclosed spaces, ensuring that an adult can comfortably enter the tunnel to assist a child in an emergency.
- Anti-Entrapment Netting: All exterior and tunnel netting features precision machine-knitted grids that prevent head and finger entrapment while allowing maximum airflow and parental visibility.
Electrical & Hardware Safety
- Eye-Safe Projector Placement: The short-throw projector is securely mounted out of the direct line of sight, preventing eye strain or glare for children looking up from the ball pit.
- Fire Retardancy: The PVC tarpaulin, EPE foam, and pit balls all strictly comply with commercial B1 (Europe) and NFPA 701 (USA) fire-resistance standards.
B2B Customization & Order Process
This unit is designed for brand integration. Both the physical structure and the digital games can be customized to echo your venue’s unique identity.
- Marquee Branding (Day 1): The top castle facade currently showing placeholder text is your primary branding real estate. Send us your vector logo, and we will CNC-cut and print it directly onto the soft-padded archway.
- Digital Integration: The included micro-PC features 20+ interactive games. We can configure the software to display your logo on the standby screensaver or integrate your corporate colors into the game interface.
- Space Verification (Days 2-3): Provide your corner dimensions. Our engineering team will calibrate the exact projector throw distance and mounting height based on your specific ceiling clearance.
- Manufacturing (18-25 Days): The physical framework is fabricated in our ISO-certified facility. The projector and IR sensor are pre-calibrated prior to shipping.
- Installation Support: The physical frame uses modular clamp fittings for easy local assembly. We provide remote technical support for the final alignment and calibration of the interactive projection system.
