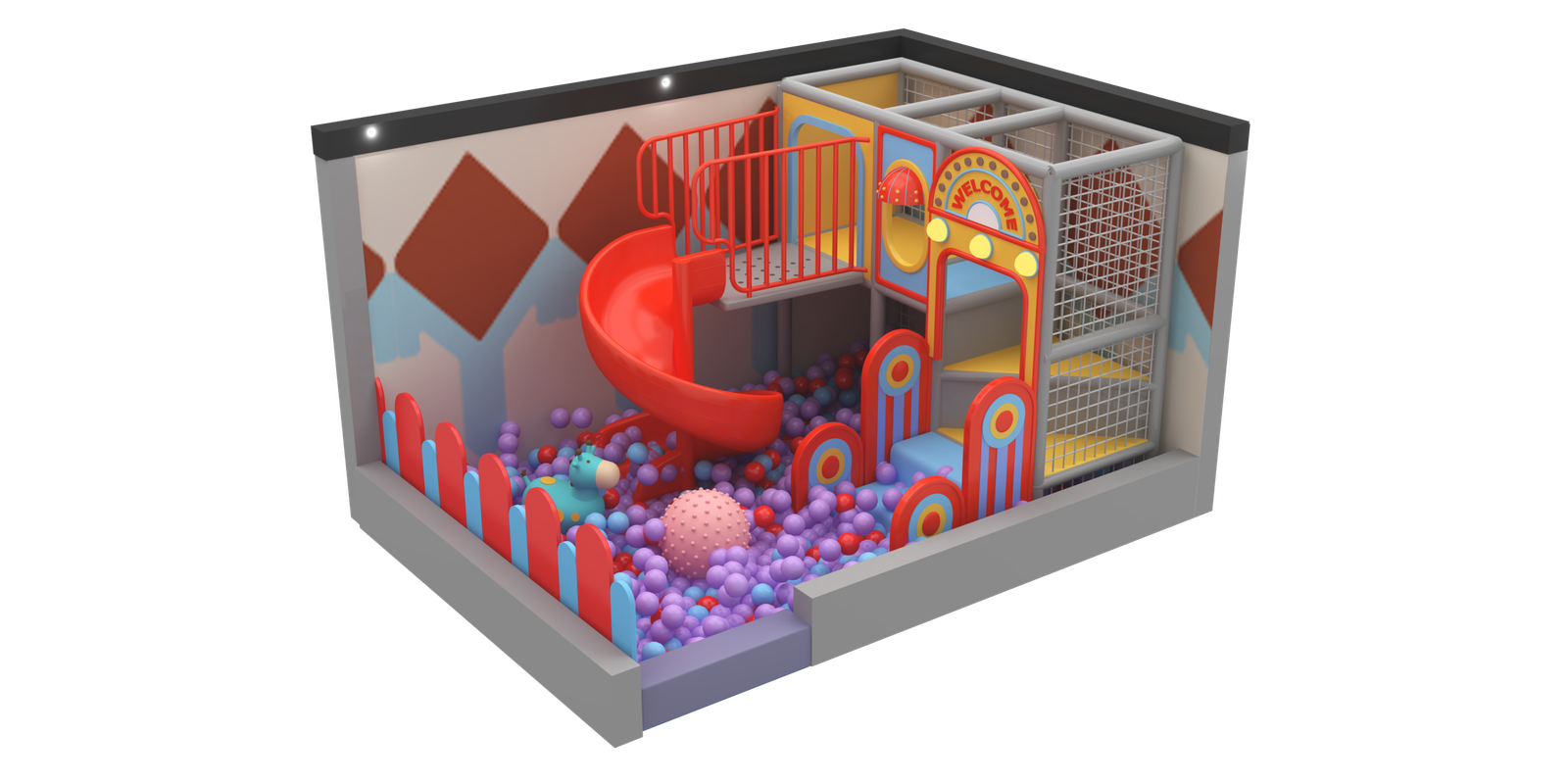

Vintage Carnival Themed Compact Corner Play Unit with Open Curved Slide
Stand out from generic pastel playgrounds. Designed for 30 to 50 sqm corner spaces, this unit utilizes a highly photogenic “Vintage Carnival” theme featuring a classic red open curved slide, a marquee-style welcome arch, and a vibrant ball pit. Perfect for birthday party centers, themed restaurants, and high-energy FECs looking to drive social media sharing.
Request Custom Quote
1 Complete Set (Customizable)
20 - 30 Business Days
Global Dispatch / Local Partners
🔒 Secure B2B transaction. 100% CAD Design satisfaction guarantee.
Product Technical Specifications
| Recommended Age Group | 2 to 8 Years Old (Toddlers & Young Children) |
|---|---|
| Space Requirement | 30 to 50 Square Meters (e.g., 7m x 5m layout) |
| Player Capacity | 4-8 Children simultaneously |
| Core Framework | Heavy-duty Φ48mm hot-dip galvanized steel pipes (1.5mm thickness). Highly stable and rust-proof. |
| Open Curved Slide | Food-grade, UV-resistant LLDPE (Linear Low-Density Polyethylene). Open-top design for maximum parent visibility. |
| Soft Padding System | Thick EPE pearl cotton foam wrapped in 0.55mm thick fire-retardant PVC tarpaulin (Red, Yellow, Blue Carnival palette). |
| Ball Pit System | Custom PVC perimeter fencing containing approx. 12,000 crush-proof PE balls (Purple/Blue mix). |
| Key Play Features | Carnival marquee archway, open red curved slide, square climbing tower, and soft-padded access stairs. |
Global Safety Standards & Compliance
Open slides present different safety challenges compared to fully enclosed tubes. Our engineering team meticulously calculates side-wall heights and deceleration zones to ensure strict compliance with European and American commercial standards.
Open Slide Fall Protection (EN 1176-3)
- Compliant Lateral Protection: According to EN 1176-3:2017 standards for slides with a fall height between 1.2m and 2.5m, the side height (lateral protection) of our open curved slide is manufactured to be strictly greater than 150mm. This effectively prevents children from tipping over the edge during high-speed cornering.
- Radius & Angle Control: The tops of the slide sides are radiused to prevent impact injuries, and the maximum side angle from the slide bed is maintained under 30°, ensuring a secure sliding track.
Entrapment & Material Safety
- Anti-Entrapment Netting: The square climbing tower is enclosed with machine-knitted nylon safety netting. The grid spacing prevents finger entrapment and stops external scaling attempts.
- B1 Fire Retardancy: The highly saturated PVC tarpaulin and the internal EPE foam comply with commercial B1 (Europe) and NFPA 701 (USA) fire-resistance standards, essential for indoor commercial venues.
B2B Customization & Order Process
The “Vintage Carnival” aesthetic is a proven attention-grabber, but we can easily tailor the signage and layout to fit your specific venue constraints.
- Marquee Customization (Day 1): The “WELCOME” archway is a blank canvas. Provide your venue’s name or logo, and we will integrate it into the printed PVC design to create a custom focal point for your playground.
- Corner Flow Planning (Days 2-3): Send us your exact corner dimensions. We will ensure the open slide’s exit path has sufficient deceleration space within the ball pit, avoiding any structural pillars in your room.
- Palette Adjustments: If the primary Red/Yellow/Blue is too aggressive for your brand, we can tone it down to a “Pastel Circus” theme while retaining the iconic shapes and archways.
- Manufacturing (12-18 Days): Using our standard steel grid system, production is fast. The custom LLDPE open slide is rotomolded in our ISO-certified facility.
- Modular Assembly: Designed for tight indoor spaces, the steel pipes use standard clamp fittings. We provide a comprehensive 3D exploded-view manual, allowing local teams to assemble it efficiently.
